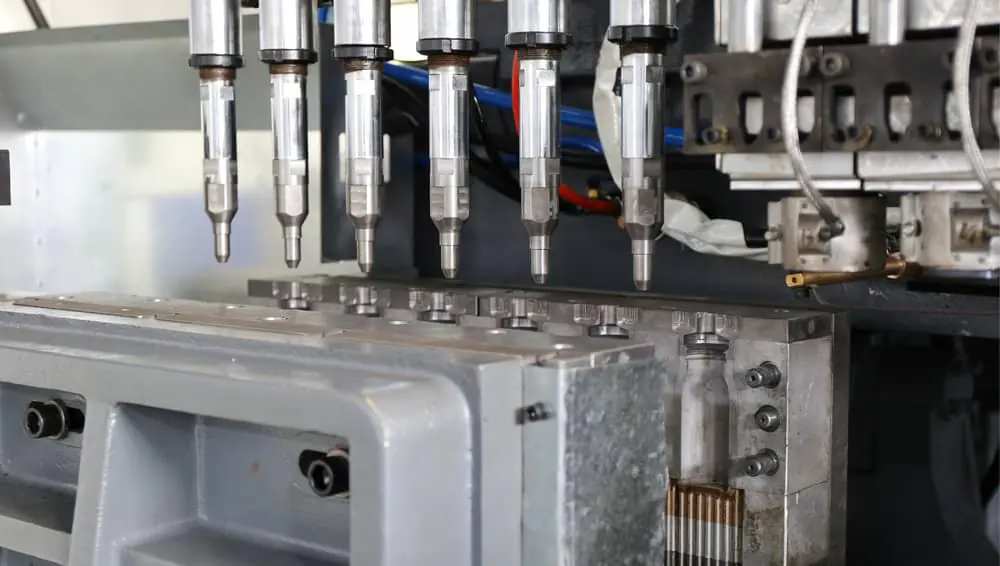

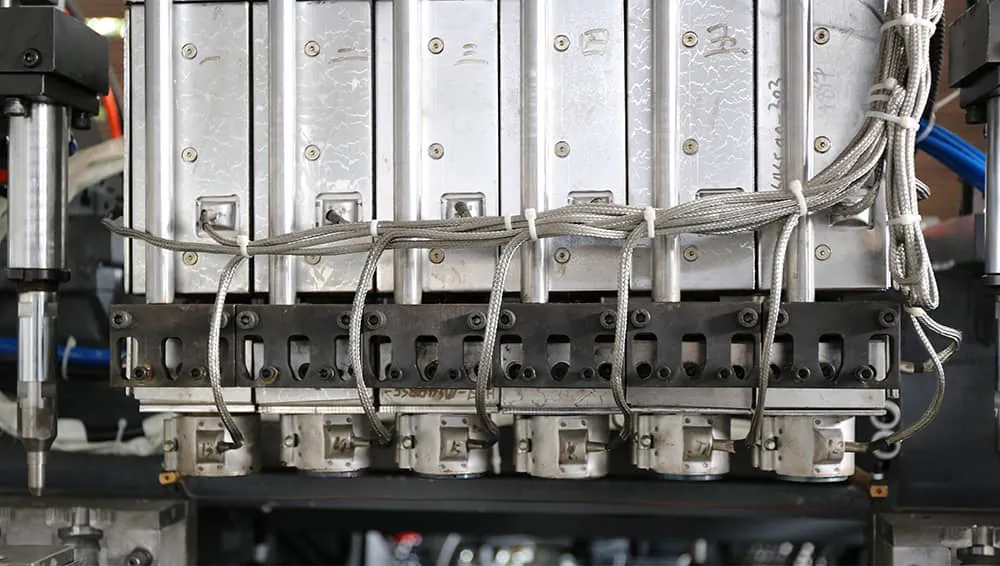

Head count and cavities
Six- or eight-head layouts are matched to bottle size and the required hourly output.
Bottles & packaging
Milk Bottle Lines: Machine Configurations
Multi-head configurations for HDPE dairy bottles, with published specifications, neck finishing and downstream handling to plan the line.
- Typical size
- 0.2–3 L
- Materials
- HDPE · Multi-layer HDPE
- Machine series
- HTS
- Suggested models
- 3
In short
Milk Bottle: what to know
HDPE dairy and beverage bottles are produced on multi-head extrusion blow molding machines, where the die head, mold, neck trimming and downstream handling work as one line. Tongda’s HTS range includes double-station machines with six- and eight-head configurations described for milk bottles.
Multi-head extrusion supports bottle production. The bottle range includes six- and eight-head applications, with output dependent on bottle weight and the selected configuration. Rotary cutting or deflashing is selected around the neck finish.

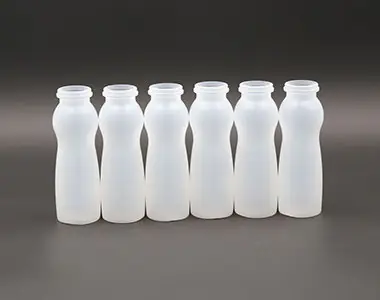

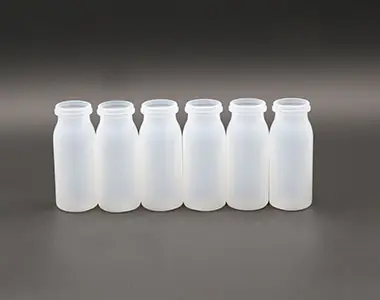

Typical products
- Fresh milk bottles
- Yogurt drink bottles
- Juice and beverage bottles
- Single- and multi-layer dairy bottles
Materials
- HDPE
- Multi-layer HDPE
Production process
How the production line works
- Step 01
Prepare the resin
Blow-molding grade resin, masterbatch and regrind are dosed to the product specification.
- Step 02
Extrude the parison
The extruder melts the material and the die head forms a hollow tube of controlled wall thickness.
- Step 03
Close and blow
The mold closes on the parison and compressed air forms the part against the cavity.
- Step 04
Cool and release
The part cools in the mold until it holds its shape, then the mold opens and the part is removed.
- Step 05
Trim and finish
Flash at the neck, handle and base is removed; necks are cut or reamed where required.
- Step 06
Inspect and pack
Weight, dimensions and leak tightness are checked before labeling and packing.
Selection guide
Choosing a machine
Neck finishing

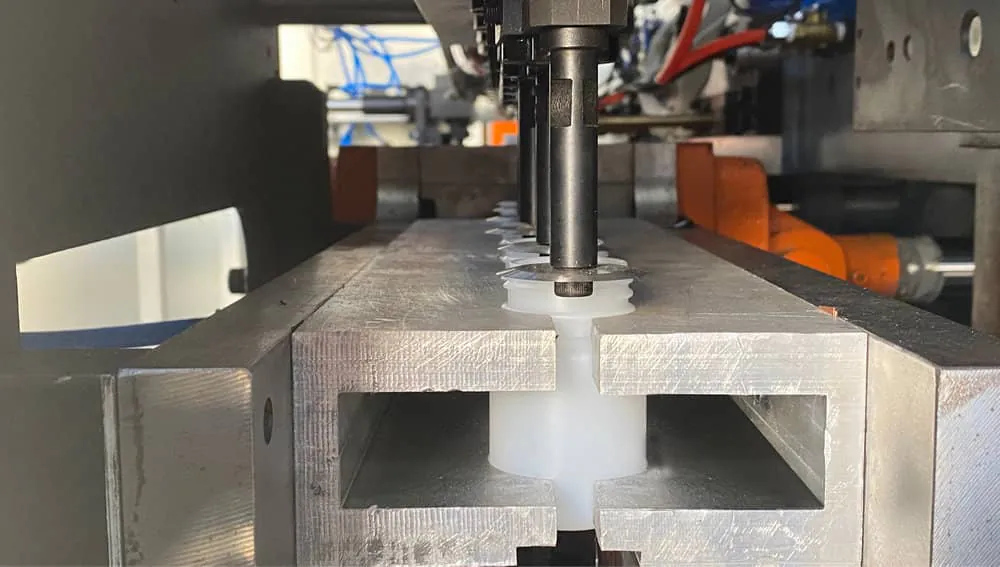

Rotary cutting or deflashing is chosen around the neck design and cap fit.
Layer structure
Light-barrier or multi-layer walls change the extruder and die-head configuration.
Line integration
Plan leak testing, conveying and packing with the machine so the line runs as a whole.
Machine configurations
Milk Bottle line configurations

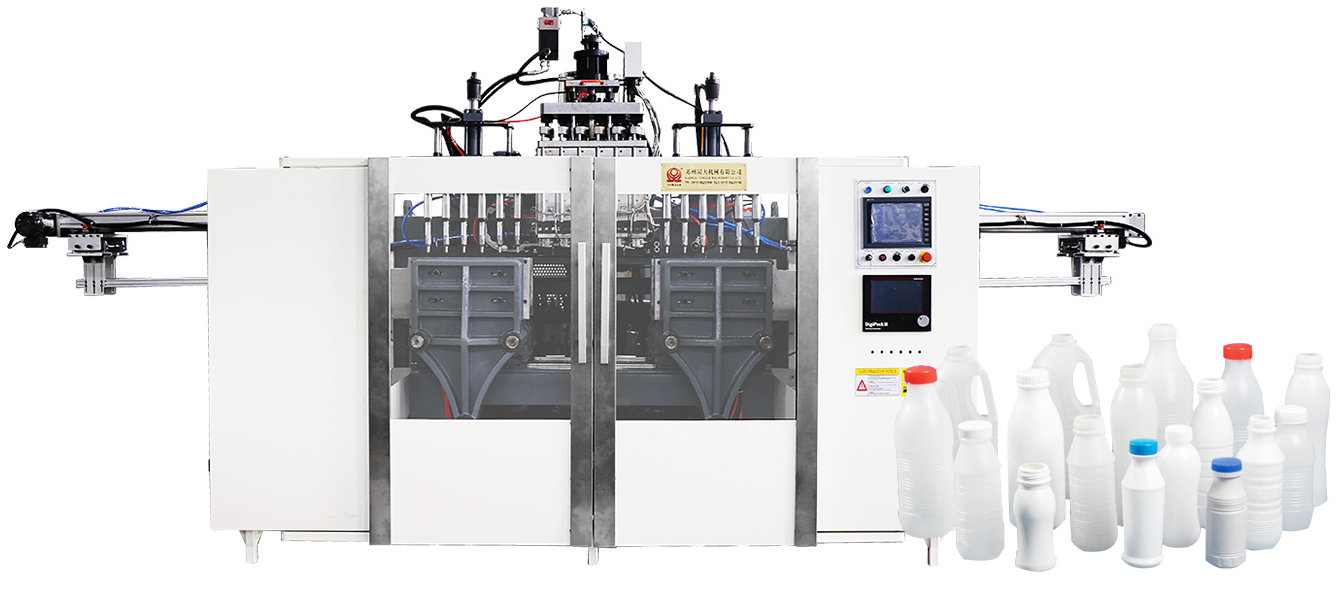

Double-station blow molding for milk bottles and other small bottles, with four- or six-head configurations available in the product range.
- Stations
- Double
- Clamping
- 70 kN
- Power
- 72 kW
HTSII-2L
≤ 2 LDouble-station extrusion blow molding for small bottles.
- Stations
- Double
- Clamping
- 44 kN
- Power
- 39 kW
HTS-2L
≤ 2 LSingle-station extrusion blow molding for small bottles.
- Stations
- Single
- Clamping
- 44 kN
- Power
- 30.5 kW

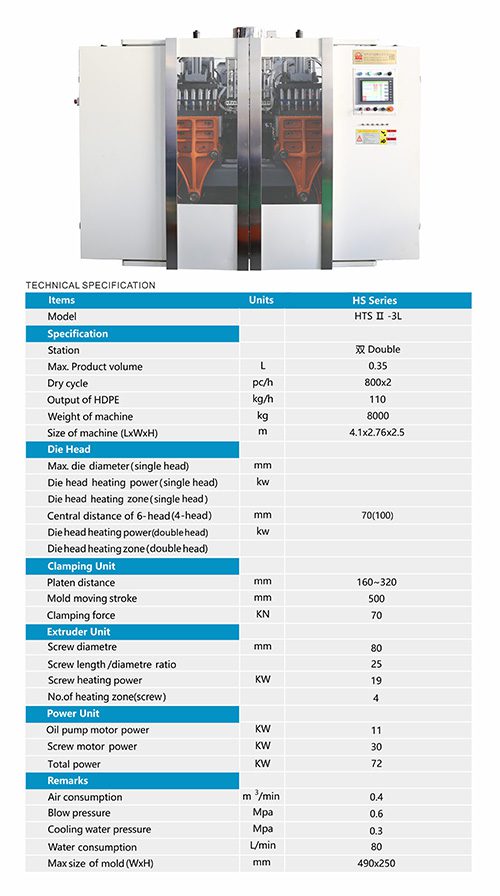

| Model | Stations | Max. volume | Clamping force | Screw | Total power | Max. mold (W × H) | Datasheet |
|---|---|---|---|---|---|---|---|
| HTSII-3L | Double | — | 70 kN | 80 mm | 72 kW | 490 × 250 mm | PDF · 749 KB |
| HTSII-2L | Double | 2 L | 44 kN | 60 mm | 39 kW | 360 × 320 mm | PDF · 1.6 MB |
| HTS-2L | Single | 2 L | 44 kN | 50 mm | 30.5 kW | 360 × 320 mm | PDF · 1.7 MB |
Suggested starting points from the published range. The final configuration depends on your product drawing, resin, weight and output target.
Quotations, prices and project cases: Tongda milk bottle machines on tongdamachine.net ↗
Video & product gallery
Milk Bottle Blow Molding Machines
Watch on YouTubeMachine in operation
See the milk bottle line running
Watch a Tongda machine producing this type of product, from parison extrusion to the finished part. For a video of a specific model or configuration, ask our team.
More machine videos
Questions from buyers
FAQ
Didn't find your answer?
Ask our engineersWhich machine is used for small milk bottles?
The HTSII-3L double-station machine is the reference model for milk bottles, with four- or six-head configurations available in the range.
Can the bottle neck be finished on the machine?
Neck finishing such as rotary cutting or deflashing can be integrated. The method is selected for the specific neck finish.
Is the machine suitable for food contact?
Food-contact suitability depends on the resin, the line set-up and your local regulations. Discuss the requirements with the team for your project.
