HS-2L
≤ 2 LSingle-station hydraulic servo extrusion blow molding for bottles up to 2 L, with a toggle clamping unit.
- Stations
- Single
- Clamping
- 70 kN
- Power
- 40.3 kW
Tongda machinery products
Find Your Blow Molding Machine
Compare the Tongda range, from small bottles to drums and technical hollow products.
- 61models in the range
- 5machine series
- 0.6–3000 Lmax. product volume
- 1999building blow molding machines since
HS Series
Servo and fully electric machines for bottles, jerry cans and stackable containers. 17 models · 2–30 L
HSE-2L
≤ 2 LSingle-station, fully electric extrusion blow molding for bottles up to 2 L, with electric drives for extrusion, mold movement and parison wall-thickness control.
- Stations
- Single
- Clamping
- 100 kN
- Power
- 42.35 kW
HSEII-2L
≤ 2 LDouble-station, fully electric extrusion blow molding for bottles up to 2 L, with electric drives for extrusion, mold movement and parison wall-thickness control.
- Stations
- Double
- Clamping
- 100 kN
- Power
- 65 kW
HSII-2L
≤ 2 LDouble-station hydraulic servo extrusion blow molding for bottles up to 2 L, with a toggle clamping unit.
- Stations
- Double
- Clamping
- 70 kN
- Power
- 48.7 kW
HS-5L
≤ 5 LSingle-station hydraulic servo extrusion blow molding for bottles and jerry cans up to 5 L, with a toggle clamping unit.
- Stations
- Single
- Clamping
- 158 kN
- Power
- 63.5 kW
HSE-5L
≤ 5 LSingle-station, fully electric extrusion blow molding for bottles and jerry cans up to 5 L, with electric drives for extrusion, mold movement and parison control.
- Stations
- Single
- Clamping
- 158 kN
- Power
- 66.25 kW
HSEII-5L
≤ 5 LDouble-station, fully electric extrusion blow molding for bottles and jerry cans up to 5 L, with electric drives for extrusion, mold movement and parison control.
- Stations
- Double
- Clamping
- 158 kN
- Power
- 106.9 kW

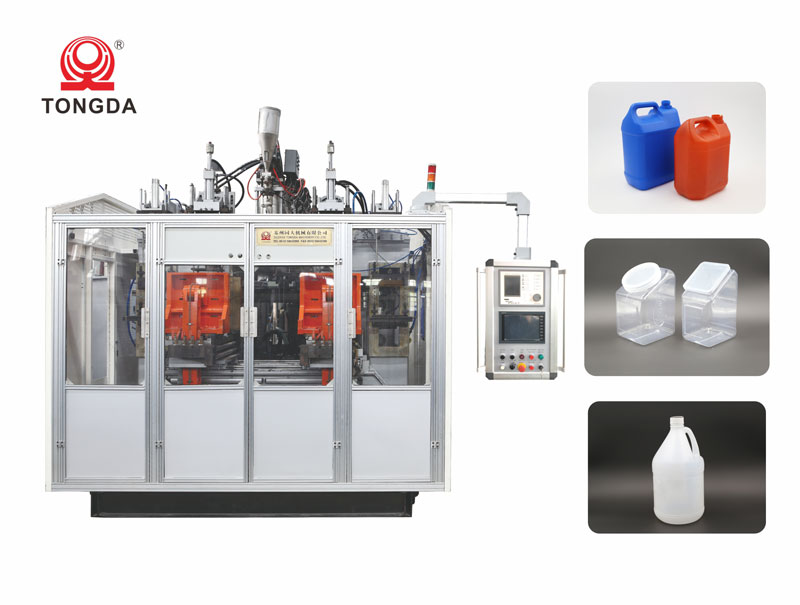

HSII-5L
≤ 5 LHydraulic servo extrusion blow molding for jerry cans, with multi-head configurations for smaller bottles.
- Stations
- Double
- Clamping
- 158 kN
- Power
- 80 kW
HS-12L
≤ 12 LSingle-station hydraulic servo extrusion blow molding for jerry cans and containers up to 12 L, with a toggle clamping unit.
- Stations
- Single
- Clamping
- 220 kN
- Power
- 86 / 93 kW
HSE-12L
≤ 12 LSingle-station, fully electric extrusion blow molding for jerry cans and containers up to 12 L, with electric drives for extrusion, mold movement and parison control.
- Stations
- Single
- Clamping
- 260 kN
- Power
- 90.25 kW
HSEII-12L
≤ 12 LDouble-station, fully electric extrusion blow molding for jerry cans and containers up to 12 L, with electric drives for extrusion, mold movement and parison control.
- Stations
- Double
- Clamping
- 260 kN
- Power
- 132.7 kW

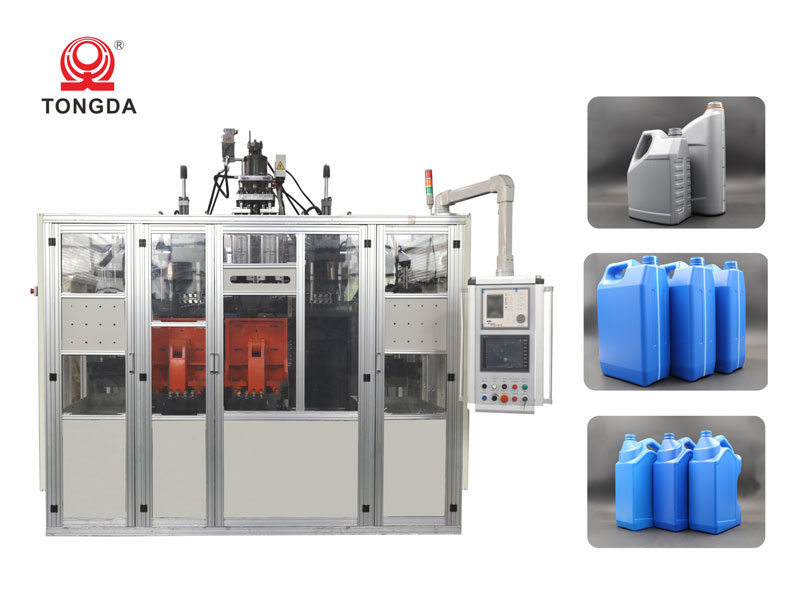

HSII-12L
≤ 12 LA hydraulic servo machine for jerry cans and stackable containers, with multi-head options for smaller hollow products.
- Stations
- Double
- Clamping
- 220 kN
- Power
- 96.1 kW
HSII-20L
≤ 20 LDouble-station hydraulic servo extrusion blow molding for jerry cans and stackable containers up to 20 L, with a toggle clamping unit. The HSII-20L replaces the HSII-15L.
- Stations
- Double
- Clamping
- 220 kN
- Power
- 180 kW
HS-30L
≤ 30 LSingle-station hydraulic servo extrusion blow molding for 20–30 L jerry cans and stackable containers on a split-type frame.
- Stations
- Single
- Clamping
- 300 kN
- Power
- 140 kW
HSE-30L
≤ 30 LSingle-station, fully electric extrusion blow molding for 20–30 L jerry cans and stackable containers on a split-type frame.
- Stations
- Single
- Clamping
- 300 kN
- Power
- 156.5 kW
HSEII-30L
≤ 30 LDouble-station, fully electric extrusion blow molding for 20–30 L jerry cans and stackable containers on a split-type frame.
- Stations
- Double
- Clamping
- 300 kN
- Power
- 241.5 kW

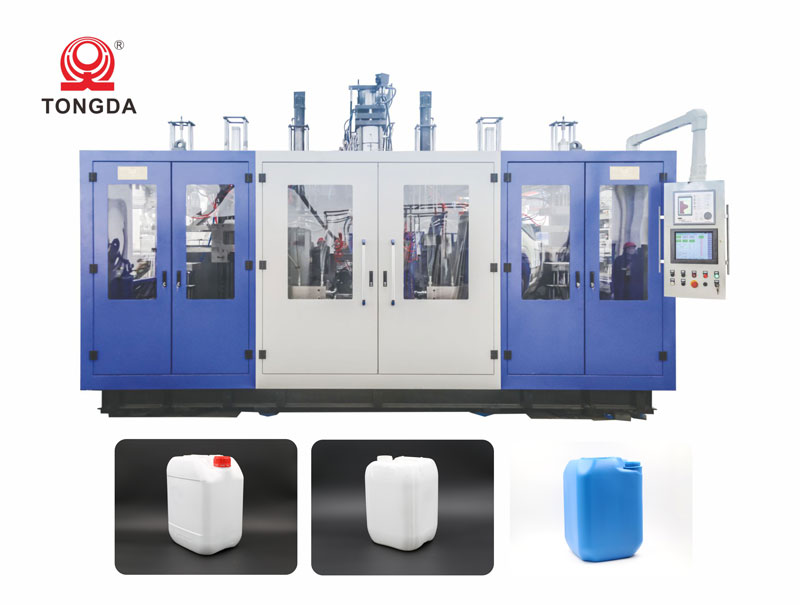

HSII-30L
≤ 30 LDouble-station electric-hydraulic extrusion blow molding for 20–30 L stackable jerry cans.
- Stations
- Double
- Clamping
- 300 kN
- Power
- 200 kW
HTS Series
Bottle and container production with deflashing configurations. 11 models · 1–30 L
HTSII-8L
≤ 1 LDouble-station extrusion blow molding with eight die heads per station for bottles up to 1 L, on a split-type frame.
- Stations
- Double
- Clamping
- 200 kN
- Power
- 165 kW

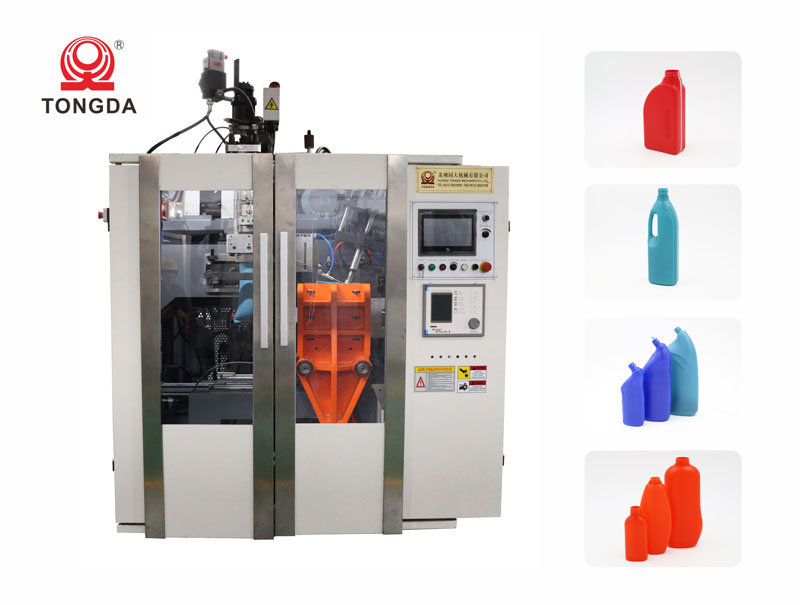

HTS-2L
≤ 2 LSingle-station extrusion blow molding for small bottles.
- Stations
- Single
- Clamping
- 44 kN
- Power
- 30.5 kW

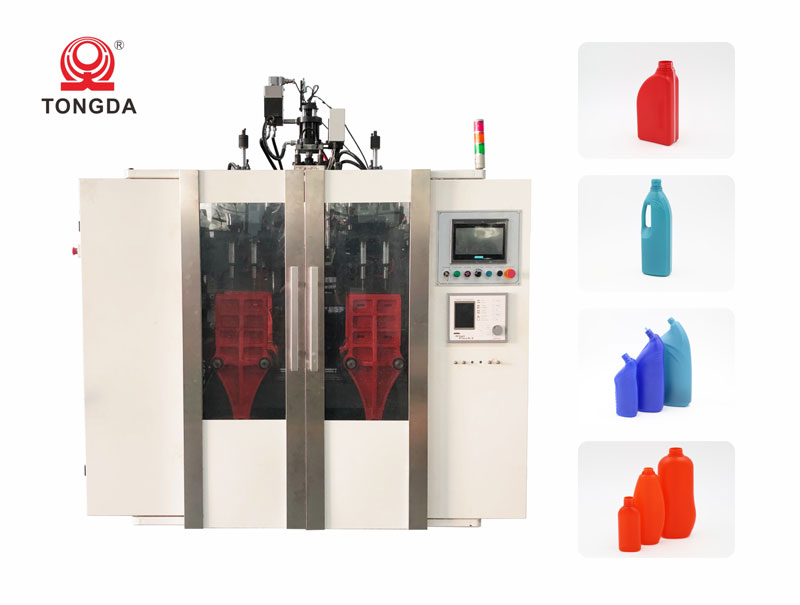

HTSII-2L
≤ 2 LDouble-station extrusion blow molding for small bottles.
- Stations
- Double
- Clamping
- 44 kN
- Power
- 39 kW
Double-station blow molding for milk bottles and other small bottles, with four- or six-head configurations available in the product range.
- Stations
- Double
- Clamping
- 70 kN
- Power
- 72 kW

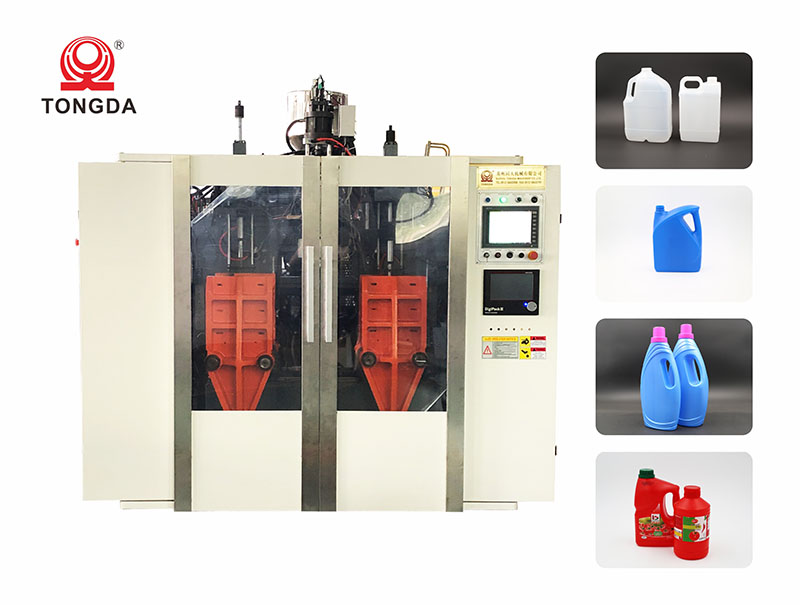

HTS-5L
≤ 5 LSingle-station extrusion blow molding for jerry cans and smaller bottles with multi-head options.
- Stations
- Single
- Clamping
- 110 kN
- Power
- 57.8 kW
HTSII-5L
≤ 5 LDouble-station extrusion blow molding for jerry cans and smaller bottles with multi-head options.
- Stations
- Double
- Clamping
- 110 kN
- Power
- 71.6 kW
HTS-12L
≤ 12 LSingle-station extrusion blow molding for jerry cans and stackable containers.
- Stations
- Single
- Clamping
- 158 kN
- Power
- 73.1 kW

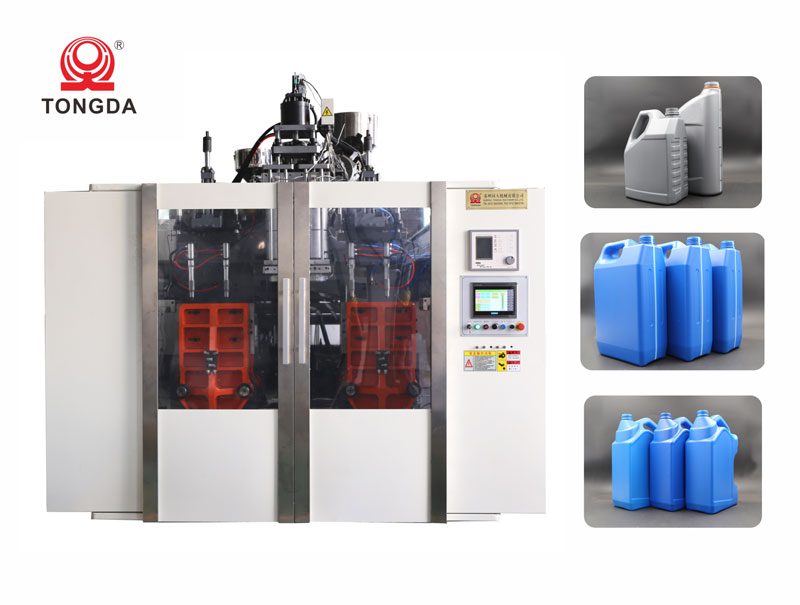

HTSII-12L
≤ 12 LDouble-station extrusion blow molding for jerry cans and stackable containers.
- Stations
- Double
- Clamping
- 158 kN
- Power
- 78.5 kW
HTS-20L
≤ 20 LSingle-station extrusion blow molding for 20 L jerry cans and containers, with deflashing configurations.
- Stations
- Single
- Clamping
- 220 kN
- Power
- 95.4 kW
HTSII-20L
≤ 20 LDouble-station extrusion blow molding for 20 L jerry cans and containers, with deflashing configurations.
- Stations
- Double
- Clamping
- 220 kN
- Power
- 145 kW
HTSII-30L
≤ 30 LDouble-station extrusion blow molding for 20–30 L jerry cans and stackable containers, on a split-type frame.
- Stations
- Double
- Clamping
- 250 kN
- Power
- 141 kW
HT Series
Single- and double-station machines for bottles and containers. 13 models · 0.6–50 L
HTII-3L
≤ 0.6 LDouble-station multi-head extrusion blow molding for small bottles from 10 mL to 0.6 L, with four or six die heads per station.
- Stations
- Double
- Clamping
- 70 kN
- Power
- 60 kW
HTII-6L
≤ 1 LDouble-station multi-head extrusion blow molding for small bottles up to 1 L, with four or six die heads per station.
- Stations
- Double
- Clamping
- 110 kN
- Power
- 78 kW
HT-2L
≤ 2 LSingle-station extrusion blow molding for small bottles.
- Stations
- Single
- Clamping
- 44 kN
- Power
- 30.5 kW
HTII-2L
≤ 2 LDouble-station extrusion blow molding for small bottles.
- Stations
- Double
- Clamping
- 44 kN
- Power
- 39 kW
HT-5L
≤ 5 LSingle-station extrusion blow molding for jerry cans and smaller bottles with multi-head options.
- Stations
- Single
- Clamping
- 70 kN
- Power
- 44.8 kW
HTII-5L
≤ 5 LDouble-station extrusion blow molding for jerry cans and smaller bottles with multi-head options.
- Stations
- Double
- Clamping
- 70 kN
- Power
- 53.8 kW
HT-12L
≤ 12 LSingle-station extrusion blow molding for jerry cans and stackable containers.
- Stations
- Single
- Clamping
- 110 kN
- Power
- 59.3 / 73.1 kW
HTII-12L
≤ 12 LDouble-station extrusion blow molding for jerry cans and stackable containers.
- Stations
- Double
- Clamping
- 110 kN
- Power
- 78.5 kW
HT-18L
≤ 18 LSingle-station extrusion blow molding for jerry cans and stackable containers up to 18 L.
- Stations
- Single
- Clamping
- 158 kN
- Power
- 73.1 kW
HTII-18L
≤ 18 LDouble-station extrusion blow molding for stackable containers and PE water-bottle applications.
- Stations
- Double
- Clamping
- 158 kN
- Power
- 78.5 kW
HW-30L
≤ 30 LSingle-station, tie-bar-less extrusion blow molding for 20–30 L stackable containers.
- Stations
- Single
- Clamping
- 250 kN
- Power
- 100 kW
HWII-30L
≤ 30 LDouble-station, tie-bar-less extrusion blow molding for 20–30 L stackable containers. Previously sold as the HTII-30L.
- Stations
- Double
- Clamping
- 250 kN
- Power
- 160 kW
HWSII-50L
≤ 50 LDouble-station, tie-bar-less extrusion blow molding for containers up to 50 L.
- Stations
- Double
- Clamping
- 500 kN
- Power
- 240 kW
TDB Series
Accumulator-head machines for drums, IBC tanks, large panels and water tanks. 15 models · 10–3000 L
TDB-10A
≤ 10 LSmall accumulator-head extrusion blow molding for products up to 10 L, with a 2 L accumulator head and a stationary mold.
- Stations
- Single
- Clamping
- 110 kN
- Power
- 63.2 kW
TDB-25A
≤ 25 LAccumulator-head extrusion blow molding for products up to 25 L, with a 4 L accumulator head and a stationary mold.
- Stations
- Single
- Clamping
- 215 kN
- Power
- 91.7 kW

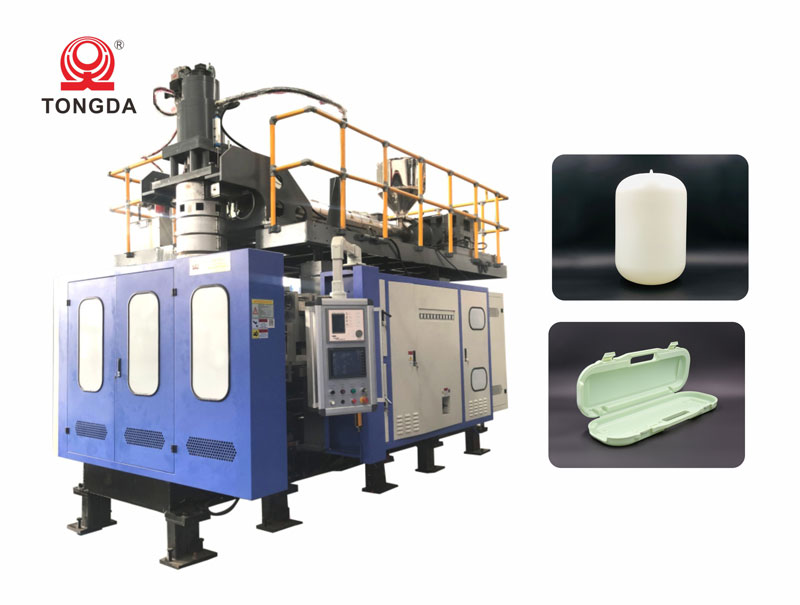

TDB-50F
≤ 50 LAccumulator-head extrusion blow molding for 20–50 L products, with bottom blowing and a servo motor.
- Stations
- Single
- Clamping
- 260 kN
- Power
- 103.9 kW

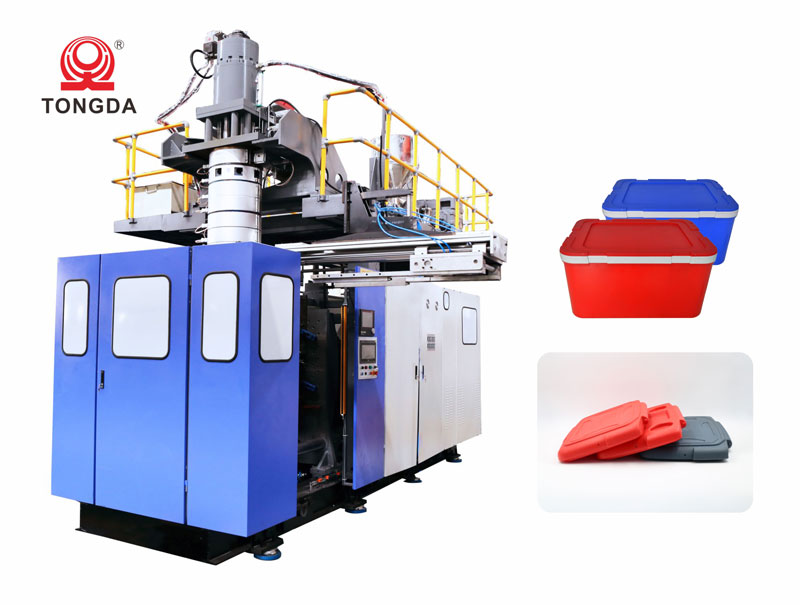

TDB-80F
≤ 80 LAccumulator-head extrusion blow molding for 50–80 L products, with bottom blowing and a servo motor.
- Stations
- Single
- Clamping
- 440 kN
- Power
- 131.5 kW

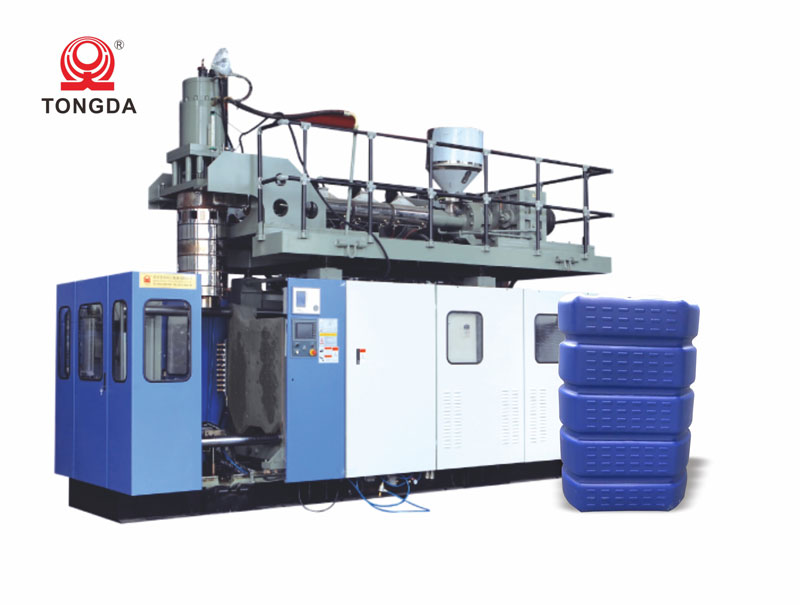

TDB-120F
≤ 120 LAccumulator-head extrusion blow molding for 80–120 L products, with bottom blowing and a servo motor.
- Stations
- Single
- Clamping
- 740 kN
- Power
- 131.5 kW
TDB-160B
≤ 160 LAccumulator-head extrusion blow molding for 120–160 L drums and large containers, with an 18 L accumulator head.
- Stations
- Single
- Clamping
- 740 kN
- Power
- 176.5 kW

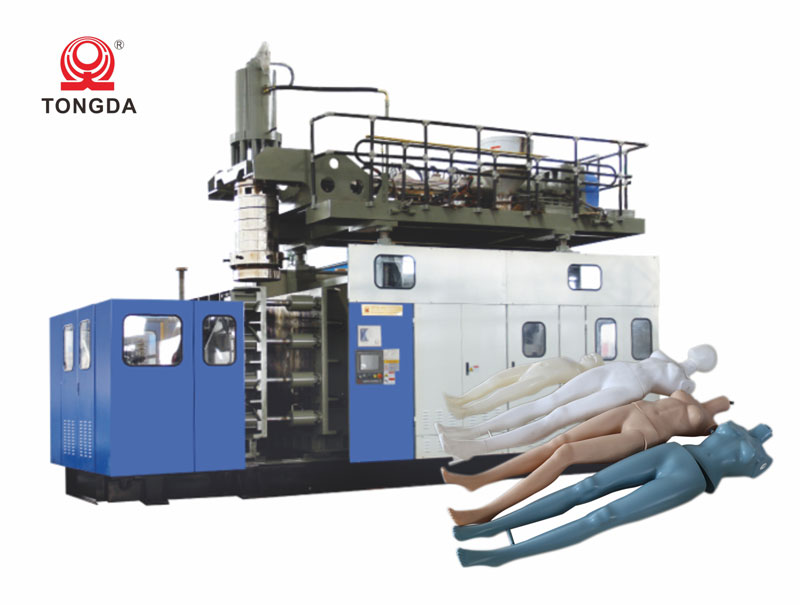

TDB-160D
≤ 160 LAccumulator-head extrusion blow molding for 120–160 L products, with bottom blowing, servo drive and a larger platen configuration.
- Stations
- Single
- Clamping
- 740 kN
- Power
- 215 kW

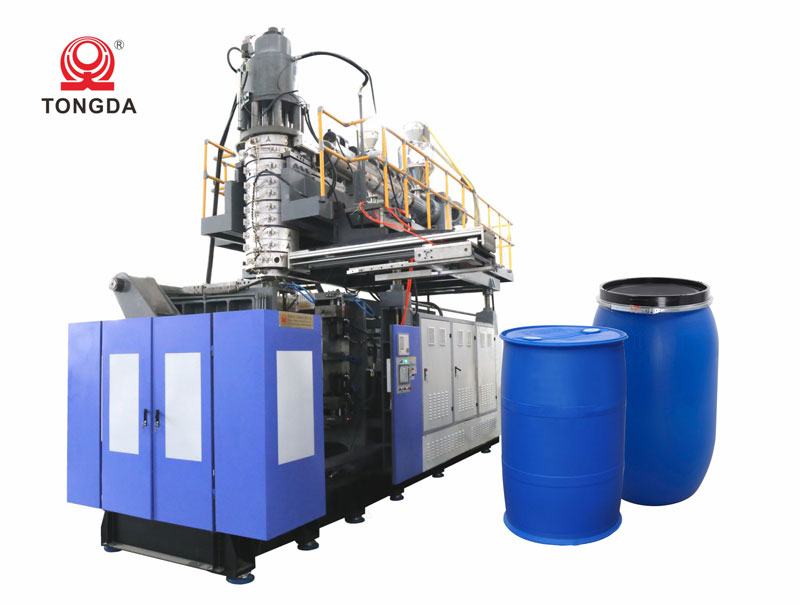

TDB-250F
≤ 250 LBlow molding for 200–220 L single-ring, double-ring and open-top drums, with a single-layer servo configuration for this model.
- Stations
- Single
- Clamping
- 740 kN
- Power
- 289.5 kW
TDBS-1000A
≤ 1000 LAccumulator-head extrusion blow molding for water tanks and storage tanks up to 1,000 L, with a 50 L accumulator head and a 120 mm extruder.
- Stations
- Single
- Clamping
- 1,000 kN
- Power
- 288 kW
TDBX-1000A
≤ 1000 LAccumulator-head extrusion blow molding for large hollow panels and parts, with a 35 L accumulator head, a 135 mm extruder and 1,000 kN clamping force.
- Stations
- Single
- Clamping
- 1,000 kN
- Power
- 308 kW
TDB-1200A
≤ 1200 LA dedicated accumulator-head blow molding machine for 1,000 L IBC tank bottles, with two 120 mm extruders, a 45 L accumulator head and a three-platen, dual-tie-bar clamping unit.
- Stations
- Single
- Clamping
- 1,500 kN
- Power
- 554 kW
TDBX-1500A
≤ 1500 LAccumulator-head extrusion blow molding for tall hollow panels and large parts, with a 35 L accumulator head, a 1,200 × 1,850 mm mold envelope and 1,200 kN clamping force.
- Stations
- Single
- Clamping
- 1,200 kN
- Power
- 308 kW
TDBS-2000A
≤ 2000 LAccumulator-head extrusion blow molding for water tanks and storage tanks up to 2,000 L, with an 80 L accumulator head and a 135 mm extruder.
- Stations
- Single
- Clamping
- 1,800 kN
- Power
- 343 kW
TDBX-2000A
≤ 2000 LThe largest TDBX panel machine: a 70 L accumulator head, a 150 mm extruder, 2,000 kN clamping force and a 1,400 × 2,000 mm mold envelope.
- Stations
- Single
- Clamping
- 2,000 kN
- Power
- 400 kW
TDBS-3000A
≤ 3000 LAccumulator-head extrusion blow molding for storage tanks up to 3,000 L, with a 120 L accumulator head fed by three 100 mm extruders.
- Stations
- Single
- Clamping
- 2,200 kN
- Power
- 451 kW
Special-purpose machines
PC water bottles and large-panel applications. 5 models · 5–350 L
EH950AII
≤ 5 LDouble-station extrusion blow molding for 5 L daily-chemical bottles, with three die heads per station, on a split-type frame.
- Stations
- Double
- Clamping
- 350 kN
- Power
- 197.5 kW

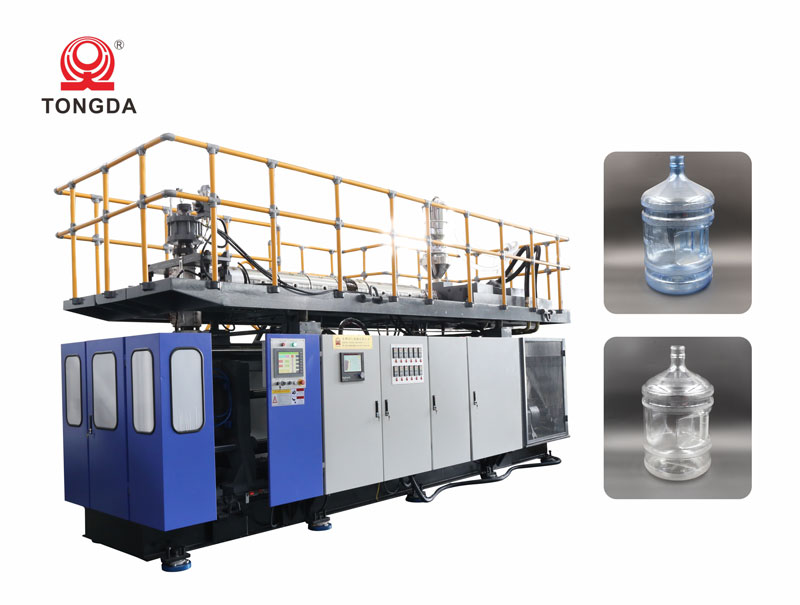

TDB-25APC
≤ 25 LA dedicated blow molding machine for 3–5 gallon water bottles, with PC and Tritan configurations available in the product range.
- Stations
- Single
- Clamping
- 215 kN
- Power
- 105 kW
TDW-160B
≤ 160 LTie-bar-less accumulator-head extrusion blow molding for large panels and tall hollow products, with an 18 L accumulator head.
- Stations
- Single
- Clamping
- 660 kN
- Power
- 179.5 kW
TDW-160E
≤ 160 LExtrusion blow molding for large panels and tall, thin hollow products, with independent mold-locking cylinders.
- Stations
- Single
- Clamping
- 1200 kN
- Power
- 215 kW
TDW-350A
≤ 350 LThe largest tie-bar-less TDW machine: a 35 L accumulator head, 1,800 kN clamping force and a 1,600 × 1,900 mm mold envelope.
- Stations
- Single
- Clamping
- 1,800 kN
- Power
- 272.5 kW
Choosing a series
Which series fits your product?
Start from the product you will make. Volume ranges are the stated maximum volumes of the models on this site.
| Series | Typical products | Extrusion | Stations | Drive | Volume range | Models |
|---|---|---|---|---|---|---|
| HS Series | Bottles, jerry cans and stackable containers | Continuous extrusion | Single / Double | Hydraulic servo, toggle clamping; fully electric HSE models | 2–30 L | 17 |
| HTS Series | Bottles, milk bottles and jerry cans | Continuous extrusion | Double / Single | Hydraulic | 1–30 L | 11 |
| HT Series | Small bottles, jerry cans and stackable containers | Continuous extrusion | Double / Single | Hydraulic; servo optional | 0.6–50 L | 13 |
| TDB Series | Drums, IBC tanks, large panels and water tanks | Accumulator head, bottom blowing | Single | Hydraulic with servo motor | 10–3000 L | 15 |
| Special-purpose machines | 5 gallon PC water bottles, large panels, 5 L daily-chemical bottles | Dedicated configurations | Double / Single | Per model | 5–350 L | 5 |
Single or double station?
A double-station machine alternates two molds under one extrusion head, so it suits higher output. A single-station machine suits lower volumes, larger molds and simpler projects. Decide from the accepted parts per hour you need.
Continuous extrusion or accumulator head?
Continuous extrusion suits bottles, jerry cans and containers up to about 30 L at short cycles. An accumulator head stores melt and pushes out a heavy parison quickly, which suits drums and large parts.
More detail: machine selection guide · catalogue and datasheets (PDF)
Start with the finished product
Use the series and application pages to build a shortlist, then compare station arrangement, product volume, mold size and utilities. Your resin, weight, output and automation requirements determine the final configuration. Tongda’s sales site presents these industrial blow molding machines by the container each one is built to make.
Let's build your next production line
Your product.
The right machine.
Share your container, material and production requirements. We’ll help you identify a suitable machine configuration.
Discuss your project
