Bottle size and weight
Volume, gram weight and the widest dimension set the mold size and the number of cavities that fit on the platen.
Bottles & packaging
Daily Chemical Bottle Lines: Machine Configurations
Machine configurations for shampoo, detergent and household chemical bottles from 0.1 to 5 L, with published specifications side by side.
- Typical size
- 0.1–5 L
- Materials
- HDPE · PP · Multi-layer HDPE
- Machine series
- HTS · HT
- Suggested models
- 4
In short
Daily Chemical Bottle: what to know
Daily chemical bottles, such as shampoo, detergent, softener and cleaner bottles, are usually extrusion blow molded from HDPE. Tongda HT and HTS machines cover bottles up to 5 L, with single- or double-station layouts and multi-head die heads for smaller bottles.

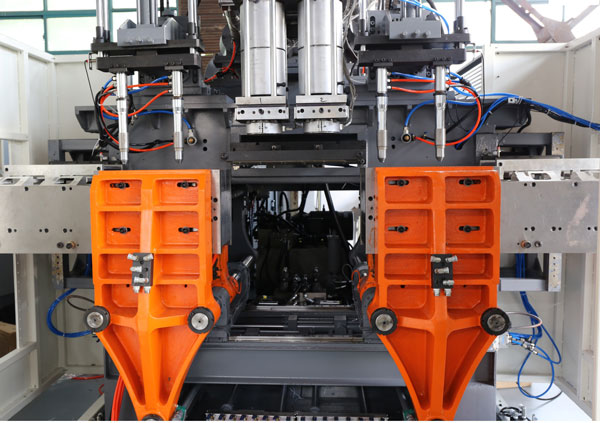

Bottle shape, neck finish and handling requirements determine the mold and blow-pin arrangement. Discuss a view strip, multiple layers, deflashing and scrap collection as part of the project.
Typical products
- Shampoo and shower gel bottles
- Laundry detergent and softener bottles
- Household cleaner and bleach bottles
- Handled bottles with view stripes
Materials
- HDPE
- PP
- Multi-layer HDPE
Production process
How the production line works
- Step 01
Prepare the resin
Blow-molding grade resin, masterbatch and regrind are dosed to the product specification.
- Step 02
Extrude the parison
The extruder melts the material and the die head forms a hollow tube of controlled wall thickness.
- Step 03
Close and blow
The mold closes on the parison and compressed air forms the part against the cavity.
- Step 04
Cool and release
The part cools in the mold until it holds its shape, then the mold opens and the part is removed.
- Step 05
Trim and finish
Flash at the neck, handle and base is removed; necks are cut or reamed where required.
- Step 06
Inspect and pack
Weight, dimensions and leak tightness are checked before labeling and packing.
Selection guide
Choosing a machine
Number of heads
Small bottles are often produced on multi-head die heads; larger handled bottles may run with one or two heads.
Neck and handle

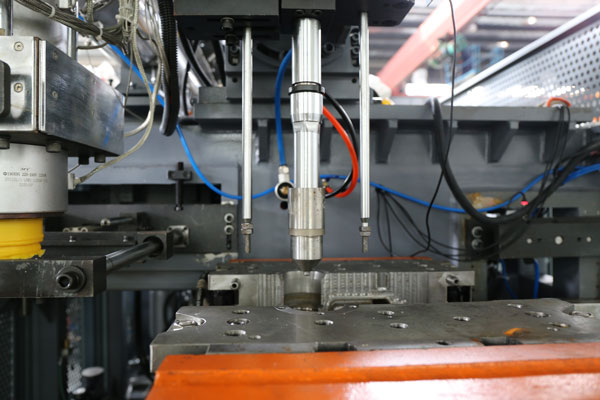

The neck finish and the handle design decide the blow-pin arrangement and how flash is removed.
Decoration

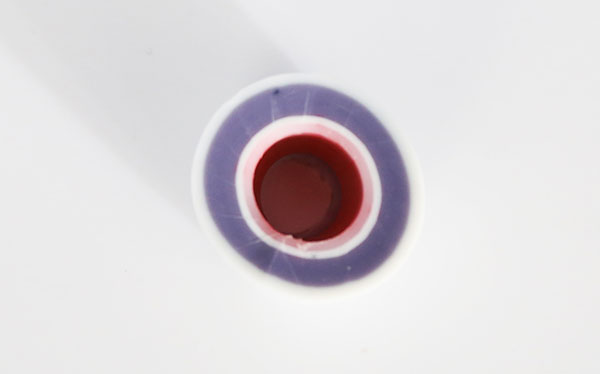

View stripes, multi-layer walls and labeling methods should be agreed before the die head is specified.
Machine configurations
Daily Chemical Bottle line configurations
HTS-2L
≤ 2 LSingle-station extrusion blow molding for small bottles.
- Stations
- Single
- Clamping
- 44 kN
- Power
- 30.5 kW
HTSII-2L
≤ 2 LDouble-station extrusion blow molding for small bottles.
- Stations
- Double
- Clamping
- 44 kN
- Power
- 39 kW

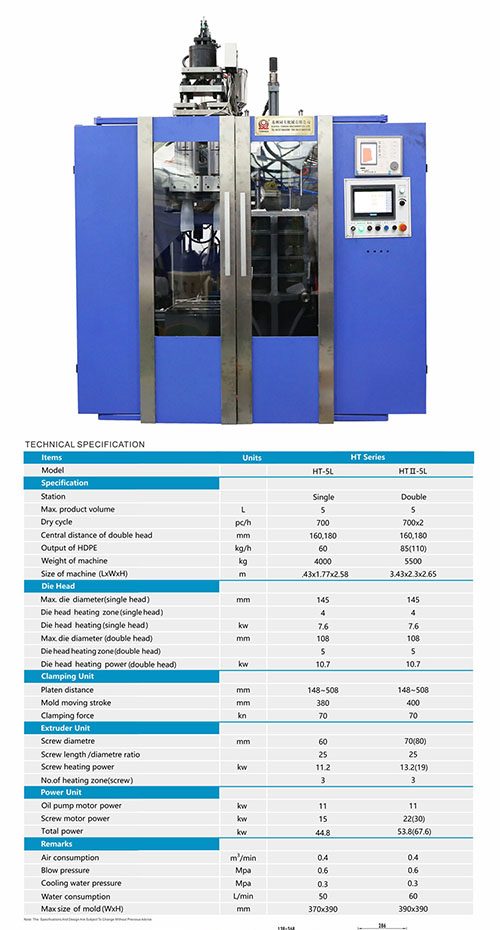

HT-5L
≤ 5 LSingle-station extrusion blow molding for jerry cans and smaller bottles with multi-head options.
- Stations
- Single
- Clamping
- 70 kN
- Power
- 44.8 kW
HTSII-5L
≤ 5 LDouble-station extrusion blow molding for jerry cans and smaller bottles with multi-head options.
- Stations
- Double
- Clamping
- 110 kN
- Power
- 71.6 kW
| Model | Stations | Max. volume | Clamping force | Screw | Total power | Max. mold (W × H) | Datasheet |
|---|---|---|---|---|---|---|---|
| HTS-2L | Single | 2 L | 44 kN | 50 mm | 30.5 kW | 360 × 320 mm | PDF · 1.7 MB |
| HTSII-2L | Double | 2 L | 44 kN | 60 mm | 39 kW | 360 × 320 mm | PDF · 1.6 MB |
| HT-5L | Single | 5 L | 70 kN | 60 mm | 44.8 kW | 390 × 390 mm | PDF · 1.7 MB |
| HTSII-5L | Double | 5 L | 110 kN | 80 mm | 71.6 kW | 440 × 420 mm | PDF · 1.6 MB |
Suggested starting points from the published range. The final configuration depends on your product drawing, resin, weight and output target.
Quotations, prices and project cases: Tongda daily chemical bottle machines on tongdamachine.net ↗
Video & product gallery

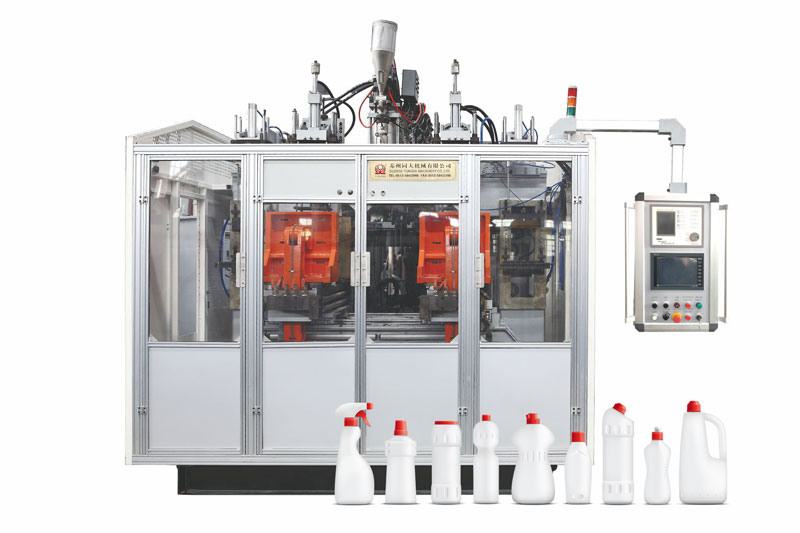

Daily Chemical Bottle Blow Molding Machines
Watch on YouTubeMachine in operation
See the daily chemical bottle line running
Watch a Tongda machine producing this type of product, from parison extrusion to the finished part. For a video of a specific model or configuration, ask our team.
More machine videos
Questions from buyers
FAQ
Didn't find your answer?
Ask our engineersWhich Tongda machine suits detergent bottles up to 5 L?
The HT-5L, HTS-5L and the double-station HTII-5L and HTSII-5L are the usual starting points. The final choice depends on bottle weight, head count and output target.

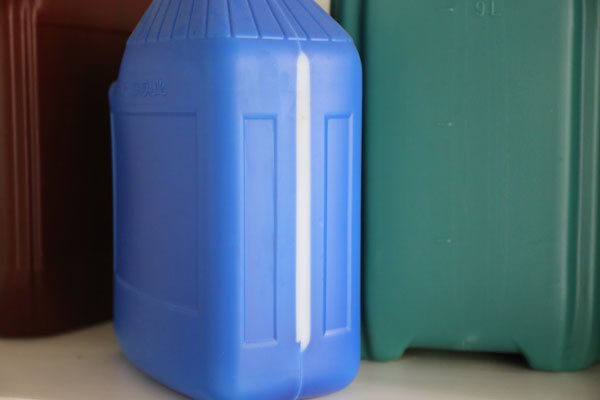

Can a view stripe be added to the bottle?
Yes. A transparent view stripe can be configured on the die head so the fill level is visible. It is specified together with the bottle and mold design.
What should I send for a quotation?
A bottle drawing or sample, gram weight, resin grade, required hourly output and any labeling or deflashing requirements.
